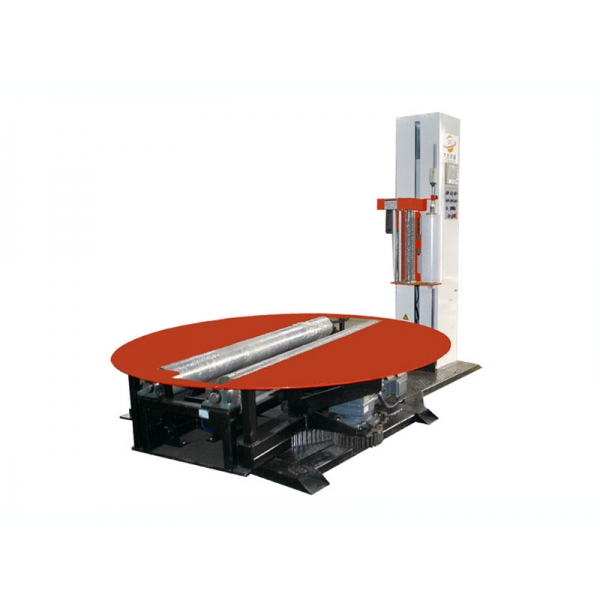

Reel Wrapper

Brief Introduction：

Reel Wrapper / Roll Wrapper is a special wrapper for wrap roll target. Roll packing machine, stretch wrap paper roll, jumbo roll by pre-stretched plastic wrap. Fully wrapped packages, airtight packages, waterproof and dustproof.

Applied To: Any material packed roll shape

Whatsapp：+86 15371056062

E-mail：sales@dostar-packing.com

Detail

GENERAL INTRODUTION

Packing machine adopts PLC automatic control, reliable performance, can be changed according to the need of winding mode and times; Rotary table automatic reset to ensure accurate positioning of goods in and out; The user can choose the tensile or pre-tensile film device; According to customer needs, matching optical electric control head, automatic height measurement; According to the need to design and manufacture supporting production lines.

WORKING PARAMETERS

DESCRIPTION	PARAMETERS
Roll Diameter(mm)	1200mm
Roll Width(mm)	300-1800
Load Weight Max.	2000 KG
Wrapping Speed	20-40 Rolls/hour
Turn Plate Dia.	2000mm
Turn Plate Speed.	0-12RPM
Turn Plate Height	460(general)520(auto ejection)
Power Supply	110/220/380V 50/60HZ
Machine Weight	1110KG
Power	2.0KW
Machine Dimension	30002000200mm (LWH)
Roller Dia.	150mm
Roller Center Distance	420mm
We welcome oversized wrapping machine OEM.
